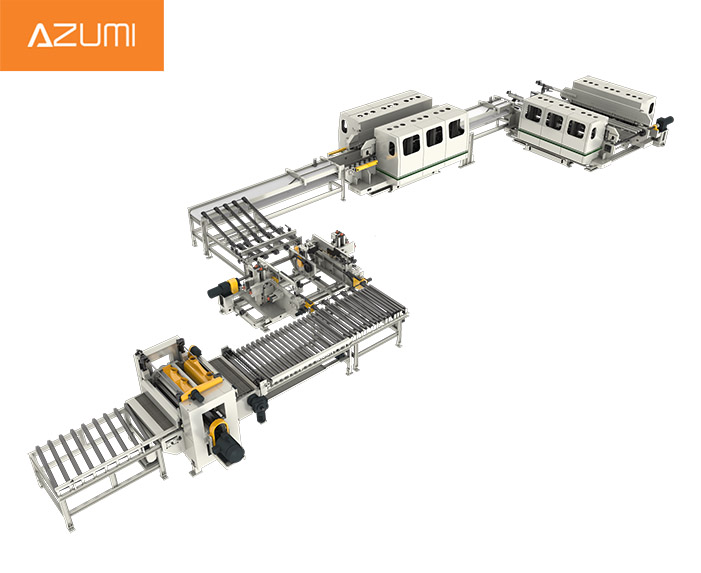

AZUMI Machinery provides slitting and slotting equipment contains chain multiple blade saws and floor double end tenoner line.
Width:1000-1300mm;Length:1000-1800mm;Thickness:2-10mm.
1、Chain guide transmission form,platform type and upward sawing processing,to ensure the straightness and smoothness of the product.
2、Chain drive ,upward sawing processing.
3、The support device is made of aerospace aluminum,which is light in material and small in shape.
4、Polymer resin countertop,wear resistant,small deformation.
5、Pressing and auxiliary compression on the platform,good compression can guarantee the straightness of the product.
Width:100-610mm;Length:450-2450mm;Thickness:3-10mm.
1、Three-mountain type chain and ceramic guide rail:The snap-in structure ensures high-speed operation of the equipment and powerful precision.
2、The pressure-type upper pressing device of the joint type:the pressure is even and stable,and the error caused by the difference of the plate is overcome.
3、Well-designed integrated base and heavy body:high speed,long-lasting and stable guarantee.
4、The original vacuum feeding system makes the feeding more precise(for SPC)
| Processing Size | Laminate Flooring Line | Parquet Flooring Line |
|---|---|---|
| Length | 900-2460mm | 900-1860mm |
| Width | 100-310mm | 100-225mm |
| Thickness | 8-25mm | 8-12mm |
| Automatic Loading System | Description | Qty |
|---|---|---|
| Automatic Loading System | Speed: 10pcs/min Actuating Motor: 3.0kw Roller conveyor Motor power: 1.5kwx4P; Speed:8~40m/min | 1Set |
| Roller Conveyor and Chain Multiple Blade Saw | Chain Multiple Blade Saw Model：ISG-204/SF-US-BR Feed Drive Unit：3.7kW×4P 1 unit Inverter Control Feeding Speed：8 ～ 40m/min （ With the increase of thickness and Slice number, feed rate decreasing） Caterpillar Chain：N75 type Chain×2 Caterpillar Chain Guide ：N75 resin type Main Spindle：22kW×2P 1 unit 3000rpm Main Spindle up-down：0.4kW×4P Up Pressing Device：Wear white rubber roll Up Pressing Up-down：Electric control Roller Brush：Nylon brush φ160×1300kW 0.75kW×4P 1 unit Tool Size：O.Dφ250mm×I.Dφ90mm×2.4mm(Saw kerf)×60(teeth) Dust Collector Diameter：Φ150mm (Connection caliber Φ150 ) 6 units Necessary dust gathering wind speed: 30m/s per unit Central Material Transfer Device 90°Turning：1.5KWX4P 2PCS Belt conveyor ：1.5kwx4P , Speed: 8～20m/min |
1Set |
| Longitudinal Double End Tenoner +Belt Conveyor+ Transverse Double End Tenoner (6+6), (1Set) Consist of below: | ||
| Feeding device | Motor: 2.2KWX4P 1 set, frequency conversion variable speed Feeding speed: 20~90m/min Feeding belt: endless belt |
1Set |
| Longitudinal Double End Tenoner | 1. Model: IST3A02B/H30C-DV10S 2. Base: customized 3. Linear guide: Taiwan Silver 4. Chain: AZUMI N30 customized 5. Guide rail: AZUMI ceramic guide rail customization 6. Compression belt: customized V-belt 7. Pressure roller: stainless steel custom 8. Frequency converter: Toshiba 9. Knife shaft upright: customized casting 10. Motor: customized 11. Motor tray: customized casting 12. Knife shaft dust cover: customized welded parts 13. Guide rail dust removal device: left, right, entrance and exit total 4 places Mobile frame: fixed on the left side and installed on the right side; linear guide, digital display; 1.1KWX4P 1 set 14. Feeding motor 7.5KWX4P, frequency conversion speed 16.6 Station longitudinal milling spindle The first left and right lower vertical axis: 6.5kW×2P (one on each side), the tool is directly installed on the motor shaft and rotates in the opposite direction; Revolutions: 3000-7200rpm, variable speed of inverter; with dust hood; Tool used: φ250×φ40×T (need to be purchased by yourself), hydraulic bushing can be installed, with spindle tilting mechanism;The second vertical axis on the left and right: 6.5kW×2P (one on each side), the tool is directly installed on the motor shaft and rotates in reverse; Revolutions: 3000-7200rpm, variable speed of inverter; with dust hood; Tool used: φ250×φ40×T (need to be purchased by yourself), hydraulic bushing can be installed, with spindle tilting mechanism;The third left and right lower vertical axis: 6.5kW×2P (one on each side), the tool is directly installed on the motor shaft and rotates in the reverse direction; Revolutions: 3000-7200rpm, variable speed of inverter; with dust hood; Tool used: φ250×φ40×T (need to be purchased by yourself), hydraulic bushing can be installed, with spindle tilting mechanism;4th left and right scraper shaft: chamfering scraper assembly (one on each side), the vertical and horizontal angle adjustment can be fine-tuned;5th left and right tilt axis: 6.5kW×2P (one on each side), the tool is directly mounted on the motor shaft Revolutions: 3000-7200rpm, variable speed of inverter; with dust hood; Tool used: φ250×φ40×T (need to be purchased by yourself), hydraulic bush can be installed, with spindle tilting mechanism, the angle is recorded in the profile drawing;6th left and right tilt axis: 6.5kW×2P (one on each side), the tool is directly mounted on the motor shaft and rotates in the opposite direction; Revolutions: 3000-7200rpm, variable speed of inverter; with dust hood; Tool used: φ250×φ40×T (need to be purchased by yourself), hydraulic bushing can be installed, with spindle tilting mechanism; |
1Set |
| Belt conveyor (include stock bin) | Motor: 1.5KWX4P 1 set, frequency conversion and variable speed Feeding speed: 20~90m/min Feeding belt: endless belt Stock bin: 1 set of rubber roller pinch roller |
1Set |
| Transverse Double End Tenoner | 1. Model: IST3A08B/N75B-DV10S 2. Base: customized 3. Linear guide: Taiwan Silver 4. Chain: AZUMI N75 chain block, 2 rows, with flat gasket 5. Guide rail: custom made by AZUMI synthetic resin guide rail 6. Compression belt: customized V-belt 7. Pressure roller: stainless steel custom 8. Frequency converter: Toshiba 9. Knife shaft upright: customized casting 10. Motor: customized 11. Motor tray: customized casting 12. Knife shaft dust cover: customized welded parts 13. Guide rail dust removal device: left, right, entrance and exit total 4 places 14. Moving frame: fixed on the left side and installed on the right side; linear guide, digital display; 1.1kW×4P 1 set 15. Feeding motor 7.5KWX4P, variable frequency and variable speed, installed on the left side; 17.6 Station Transverse Milling Spindle The first left and right lower vertical axis: 4.4kW×2P (one on each side), the tool is directly installed on the motor shaft and rotates in reverse; Revolutions: 3000-7200rpm, variable speed of inverter; with dust hood; Tool used: φ250×φ40×T (need to be purchased by yourself), hydraulic bushing can be installed, with spindle tilting mechanism;The second left and right vertical axis: 4.4kW×2P (one on each side), the tool is directly installed on the motor shaft and rotates in the opposite direction; Revolutions: 3000-7200rpm, variable speed of inverter; with dust hood; Tool used: φ250×φ40×T (need to be purchased by yourself), hydraulic bushing can be installed, with spindle tilting mechanism;The third left and right vertical axis: 4.4kW×2P (one on each side), the tool is directly installed on the motor shaft and rotates in reverse; Revolutions: 3000-7200rpm, variable speed of inverter; with dust hood; Tool used: φ250×φ40×T (need to be purchased by yourself), hydraulic bushing can be installed, with spindle tilting mechanism;4th left and right scraper shaft: chamfering scraper assembly (one on each side), vertical and horizontal angle adjustment can be fine-tuned;5th left and right tilt axis: 4.4kW×2P (one on each side), the tool is directly mounted on the motor shaft Revolutions: 3000-7200rpm, variable speed of inverter; with dust hood; Tool used: φ250×φ40×T (need to be purchased by yourself), hydraulic bush can be installed, with spindle tilting mechanism, the angle is recorded in the profile drawing;The 6th left and right tilt axis: 4.4kW×2P (one on each side), the tool is directly mounted on the motor shaft and rotates in the reverse direction; Revolutions: 3000-7200rpm, variable speed of inverter; with dust hood; Tool used: φ250×φ40×T (purchased by yourself), hydraulic bushing can be installed, with spindle tilting mechanism |
1Set |
